Singularity recipe and image
Does anyone use @SingularityApp and modules to load pre-existing images into their workspace? Just curious if we are reinventing the wheel by doing so and there exists another solution https://t.co/KL0GilswXA
— Iván (@justahappygeek) February 26, 2020
Working with environment modules makes my life so much easier.
For example, for cowsay
,I created a modulefile
that will load the Singularity container to the workspace along with a script that calls it. Making the process transparent to the user (very little changes to their scripts, may be their SLURM submission scripts).
To make this work you need three things
- an executable script that calls singularity (avoid using
alias
) - the Singularity container file
- a modulefile
The modulefile
file I created for cowsay
is the following
#%Module
##
## cowsay modulefile
##
## modulefiles/
##
set ver 3.03
set msg "This module adds cowsay $ver to various paths\n"
proc ModulesHelp { } {
puts stderr $msg
}
module-whatis "Use cowsay tools $ver"
prepend-path PATH /path/to/containers/cowsay/v3.03/
The modulefile
itself is very straightforward, all it does is prepend a folder. Now the folder its prepending has two files
- the Singularity image
- an executable script that calls the image
In my system, there exists a folder with the following files
[icaoberg] $ ls -lt
total 68899
-rwxr-xr-x 1 root root 70799360 Feb 26 17:48 singularity-debian-buster-cowsay-v3.03.simg
-rwxr-xr-x 1 root root 366 Feb 26 17:48 cowsay
The contents of cowsay
(the script I built, not the actual binary) are
#!/bin/bash
IMAGE=singularity-debian-buster-cowsay-v3.03.simg
function is_compute_node(){
if [ -x "$(command -v singularity)" ]; then
return 0
else
return 1
fi
}
if is_compute_node; then
singularity run --app cowsay $(pwd)/$IMAGE "$1"
else

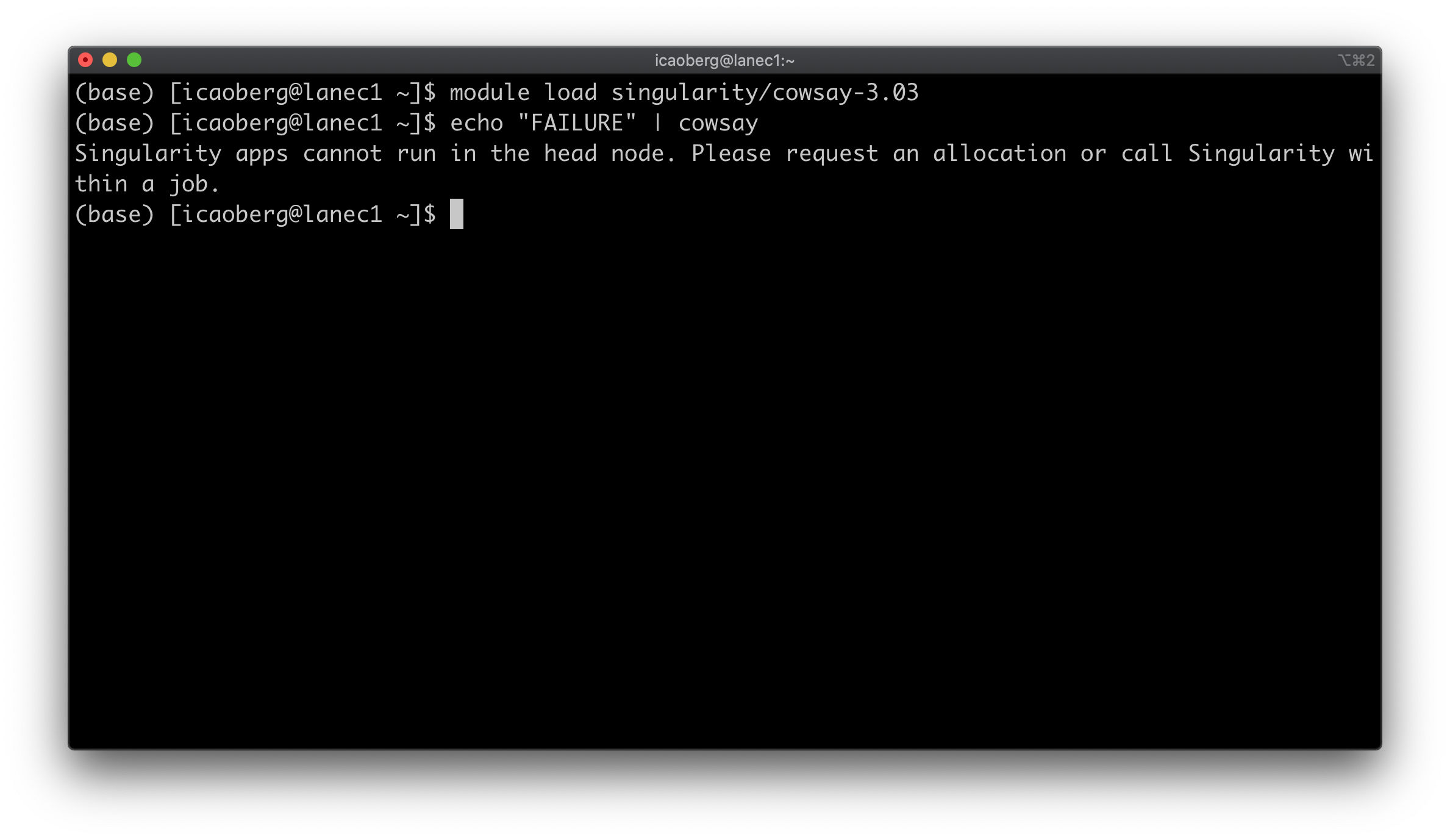

echo "Singularity apps cannot run in the head node. Please request an allocation or call Singularity within a job."
fi
Now, the function
function is_compute_node(){
if [ -x "$(command -v singularity)" ]; then
return 0
else
return 1
fi
}
is neccesary because the singularity
binary is not accesible from the head node of our HPC cluster. Users must request an allocation to a compute node in order to run apps in Singularity containers.
Example
Say I have the script example.sh
#!/bin/bash
#
#$ -j y
#$ -S /bin/bash
#$ -cwd
echo "TOTAL SUCCESS" | cowsay
With the changes above, it will now become
#!/bin/bash
#
#$ -j y
#$ -S /bin/bash
#$ -cwd
module load singularity/cowsay-3.03
echo "TOTAL SUCCESS" | cowsay
Submitting the script above using SLURM
sbatch -p public --mem=1Gb example.sh
should lead to
_______________
< TOTAL SUCCESS >
---------------
\ ^__^
\ (oo)\_______
(__)\ )\/\
||----w |
|| ||
Source code
I hope you found this post useful.
